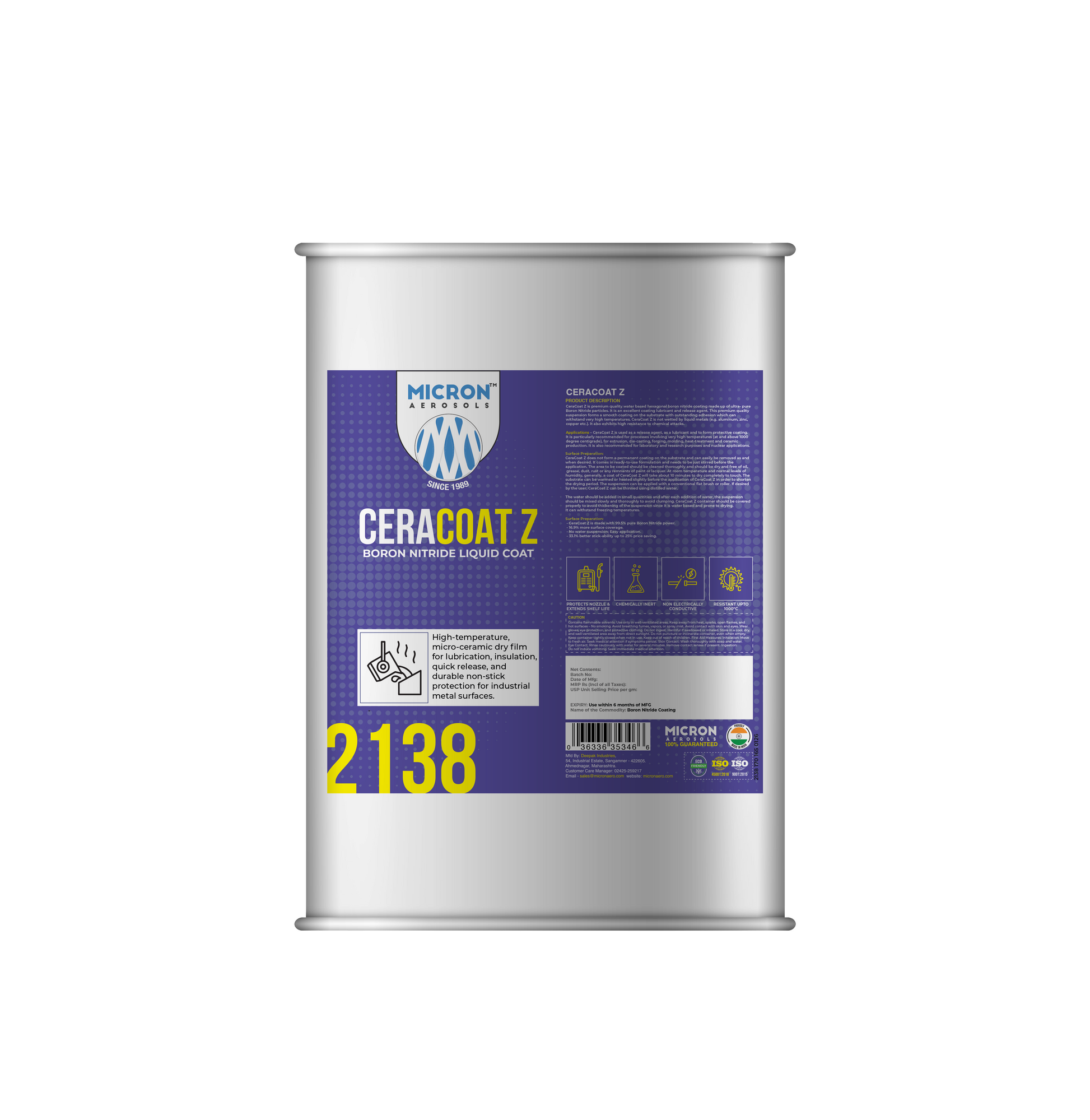

2138 CeraCoat Z - Water Based Boron Nitride Coating - 5Ltr

Advanced High-Temperature Release & Lubrication Coating

CeraCoat Z™ is a premium-grade, water-based hexagonal boron nitride (hBN) coating formulated using 99.5% ultra-pure ceramic particles. Designed for extreme industrial environments, it delivers superior high-temperature lubrication, non-stick performance, and protective surface coating properties.

This advanced ceramic suspension forms a smooth, uniform film with outstanding adhesion and thermal stability, making it ideal for processes operating at 1000°C and above.

CeraCoat Z™ prevents molten metals such as aluminum, zinc, and copper from wetting treated surfaces, significantly reducing material build-up and improving process efficiency.

Why Choose CeraCoat Z™?

• Manufactured with 99.5% high-purity hexagonal boron nitride

• Provides 16.9% higher surface coverage

• Delivers 33.1% improved adhesion performance

• Excellent resistance to molten metal wetting

• High chemical resistance

• Performs reliably in ultra-high temperature environments

• Cost-efficient solution with up to 25% price advantage

• Easy application and ready-to-use formulation

Typical Applications

CeraCoat Z™ is engineered for demanding industrial processes, including:

• Extrusion dies

• Die-casting moulds

• Forging tools

• Metal moulding operations

• Heat treatment fixtures

• Ceramic production equipment

• High-temperature furnace components

• Laboratory and research applications

• Nuclear and specialty industrial environments

It is particularly recommended for applications requiring:

• High-temperature lubrication

• Metal release properties

• Thermal barrier protection

• Molten metal non-wetting performance

Surface Preparation & Application Guidelines

CeraCoat Z™ is supplied in a ready-to-use formulation.

Surface Preparation:

• Ensure the substrate is clean, dry, and free from oil, grease, rust, dust, paint, or lacquer residues.

• The coating does not form a permanent bond and can be removed when required.

Application:

• Stir thoroughly before use.

• Apply using a brush, roller, or suitable spray system.

• At room temperature and normal humidity, drying time is approximately 10 minutes (touch dry).

• Pre-heating the substrate slightly can significantly reduce drying time.

• If required, thin with small quantities of distilled water, mixing slowly and thoroughly after each addition to prevent clumping.

• Keep container tightly closed to prevent drying or thickening, as the formulation is water-based.

CeraCoat Z™ can withstand freezing temperatures without compromising performance.

Performance Highlights

• Application temperature capability:

  • Up to 1400°C in vacuum

  • Up to 900°C in air atmosphere

• Forms a smooth, thermally stable ceramic coating

• Highly resistant to chemical attack

• Easy to remove when required

• Enhances die life and process efficiency
