Protektor® Conformal Coating for PCBs, Electronics | Military Grade

Protektor® Conformal Coating for PCBs, Electronics | Military Grade

Rs. 600.00
Rs. 850.00 Rs. 600.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Variant

Conformal Coating - Protektor® is a fast drying single component acrylic lacquer for PCBs to protect them from harsh environments, moisture, corrosion, dirt & dust, fungus, caustic vapors, thermal shocks, dielectric shocks, Chemical reactions etc.

The high dielectric strength prevents the component from high voltage arcing and corona effect while the coating further protects and insulates the electrical and electronic components.

It conforms to IPC-830CC-Military Grade MIL-I-46058C specification, is approved by Centre for Development of Telematics (C-DOT) and is RoHS compliant and environment friendly.

Liquid Variant

Spray Variant

Description

Conformal Coating Brushable Clear for PCB Assemblies, Electrical/Electronic Insulators

Conformal Coating Brushable Clear for PCB Assemblies, Electrical/Electronic Insulators

Product Photo

Packing

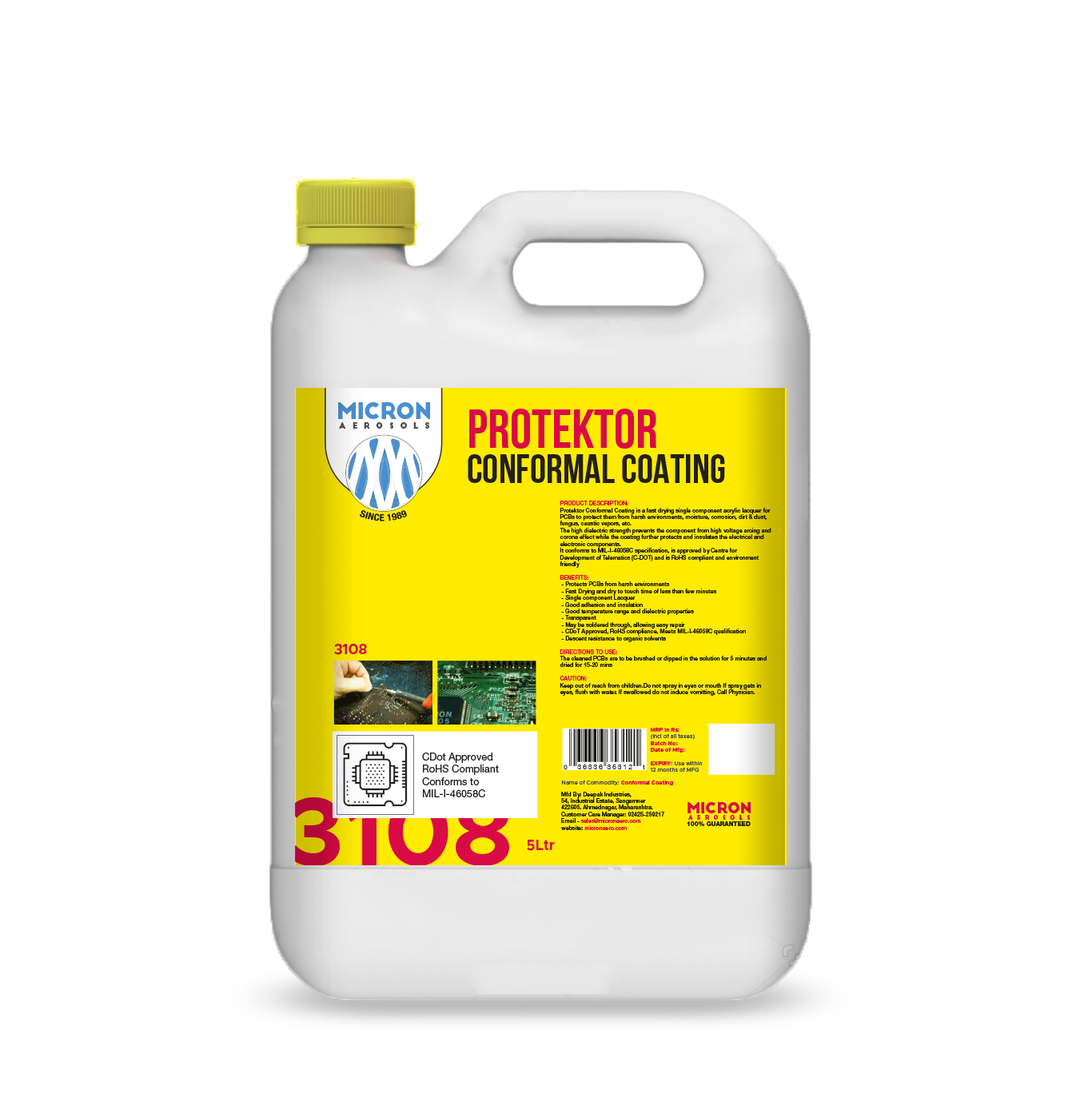

5 ltr in Carboy for Brushable coating

550ml Aerosol Spray

Type

Acrylic Resin (AR)

Appearance

Clear Transparent

Specific Gravity

0.95

Propellent

Non CFC, Flammable

Temperature Resistance

-70o C to 120o C

Dry to Touch Time

30 Mins

Film Thickness

26 Micron

Clarity

Clear transparent

Shelf Life

18 Months

GRADE

MIL – I – 46058C

2. Electrical Properties

Insulation Resistance after  Chamber Test

2.5 X 1011 Ohms

Breakdown Voltage

700 V at 26 Micron

3. Specifications

Advantages

  1. Fast Drying

  2. Single Component spray for Printed Circuit Board assemblies

  3. Protects from Humidity, Fungus & Corrosion by forming film on components

  4. Provides Insulation against high voltage arcing

  5. Excellent Flexibility & Solderability

  6. Black Coated Components can hide your circuits.

  7. Easy to Handle with Dry to tough time at 30mins

  8. Convenient to apply as aerosol and efficient for assembly line operations

Fields of Application

  1. Telephone and Telephone Exchanges Manufacturing

  2. Computer Process Control Equipments

  3. Programmable Logic Controllers

  4. Electronic Equipments like Weighing Scales, Multimeters

  5. LCD LED Bulbs, CFL

  6. Variable Frequency Drives

  7. Mobiles, Computers, Laptops, Tablets, Hard Drive PCBs

  8. Automobile Control Computers

Packaging

  1. 550ml Aerosol Spray Can

  2. 5 Ltr Carboy ( For Brushable coating)


Cured film can be easily removed  by using  Protektor Conformal Coating Thinner The information in the sheet was written based on the best knowledge and experience currently available. The information provided in this Safety Data Sheet is correct to the best of our knowledge, information and belief at the date of its publication. The information given is designed only as a guidance for safe handling, use, processing, storage, transportation, disposal and release and is not to be considered a warranty or quality specification. The information relates only to the specific material designated and may not be valid for such material used in combination with any other materials or in any process, unless specified in the text.
