Conformal Coating for PCBs: The Complete Guide
Types, uses, how to choose and apply, drying times, and IPC-CC-830 standards — for Indian electronics manufacturers.
A conformal coating is a thin protective polymer film (typically 25–75 microns) applied to a printed circuit board so it ‘conforms’ to the board’s contours. It protects electronics from moisture, dust, salt spray, chemicals, fungus, and thermal/vibration stress, increasing dielectric strength and extending the life of the assembly. Coatings come in six chemistries — acrylic (AR), silicone (SR), urethane (UR), epoxy (ER), parylene (XY) and UV-curable. For most Indian electronics manufacturing, a fast-drying acrylic spray is the default: easy to apply, easy to rework, and economical.
Why conformal coating matters
An uncoated PCB fails in the field for predictable reasons: humidity causes dendritic growth and corrosion across fine-pitch tracks; airborne dust holds moisture and creates leakage paths; condensation from thermal cycling shorts closely-spaced conductors; and salt or industrial atmospheres attack copper and solder. In the Indian climate — high humidity in coastal and monsoon regions, dust in the north, and wide temperature swings — this is a real, not theoretical, risk. A correctly specified coating is one of the cheapest reliability investments per board: a few rupees of material protecting an assembly worth hundreds or thousands.
Conformal coating does not replace a sealed enclosure, provide structural support, or protect against direct mechanical impact. It is a thin dielectric barrier — not potting or encapsulation.
The six conformal coating types compared
| Type | Code | Key strengths | Weaknesses | Typical use | Rework |
|---|---|---|---|---|---|
| Acrylic | AR | Easy to apply, fast drying, economical, excellent dielectric, easy rework, UV-traceable | Limited solvent & abrasion resistance; moderate temperature range | General electronics, consumer, LED, control boards | Easy (solvent) |
| Silicone | SR | Wide temperature range (~200°C), flexible, good for heat/vibration | Softer surface, harder to rework, can pick up dust | Automotive under-hood, power, LED, high-temp | Difficult |
| Urethane | UR | Excellent chemical & abrasion resistance, good moisture barrier | Difficult to rework, longer cure, yellowing risk | Aerospace, harsh-chemical environments | Very difficult |
| Epoxy | ER | Very hard, excellent moisture & abrasion resistance | Almost impossible to rework, can stress components | Severe environments, no rework needed | Practically none |
| Parylene | XY | Ultra-thin, uniform, superb barrier (vapour deposition) | Needs specialist vacuum equipment, expensive | Medical, defence, high-reliability | Specialist only |
| UV-curable | — | Cures in seconds under UV, high throughput | Needs UV equipment; shadowed areas need secondary cure | High-volume production lines | Moderate |
Silicone vs acrylic conformal coating — which should you use?
Choose acrylic (AR) if you want the easiest application and rework, fast drying, a proven dielectric barrier for normal operating temperatures, and low cost. Acrylics are solvent-removable, which matters for repair and inspection. Most general-purpose PCBs in India use acrylic.
Choose silicone (SR) if the board runs hot (power electronics, automotive under-hood, high-brightness LED), sees wide temperature swings, or needs flexibility under vibration. Silicone tolerates roughly −50°C to 200°C but is softer, attracts dust, and is hard to rework.
| Factor | Acrylic (AR) | Silicone (SR) |
|---|---|---|
| Ease of application | Very easy | Easy |
| Rework / repair | Easy (solvent) | Difficult |
| Temperature range | Moderate | Wide / high |
| Abrasion resistance | Moderate | Low–moderate |
| Moisture protection | Very good | Very good |
| Cost | Lower | Higher |
| Best for | General electronics | High-heat / high-vibration |
How to choose the right coating (by environment)
Indoor / consumer electronics: acrylic spray. Coastal / high-humidity / monsoon: acrylic or urethane; verify moisture-and-insulation-resistance rating. Automotive, power, LED, high heat: silicone. Chemical / fuel / abrasion: urethane or epoxy. Medical, defence, aerospace: parylene or a MIL-/IPC-qualified coating. High-volume line: UV-curable. Always confirm the coating is compatible with your components and cleaning process, and that it can be reworked if your repair flow needs it.
How conformal coating is applied
Aerosol spray (most common in India): fast, no equipment, good for prototyping and low-to-medium volume. Mask connectors, gold fingers and mating surfaces first, hold the can about 30 cm away, and apply thin, even passes. Brush: cheapest, good for touch-ups, least uniform. Dip: high throughput, coats everything unmasked. Selective / robotic: precise and repeatable for high volume, highest capital cost.
Coating thickness is specified per chemistry — commonly 25–75 µm (1–3 mils) for acrylic/urethane, thicker for silicone, much thinner for parylene. Measure with a wet-film gauge or UV inspection.
Curing and drying times
Drying (tack-free) is not the same as fully cured. Acrylic: tack-free in minutes, handling in about 30 minutes, full cure in hours (Protektor 3100 is dry-to-touch in 30 minutes). Silicone / urethane: longer — often overnight to several days for full cure, faster with heat. UV-curable: seconds under a lamp; shadowed areas need a secondary moisture/heat cure. Cure fully before powering, stacking, or field deployment.
Inspection and UV tracer
Most quality coatings contain a UV (fluorescent) tracer so coverage can be verified under UV light — missed spots, thin areas and unwanted coating on connectors show up instantly. IPC-CC-830B includes a UV-fluorescence check for exactly this reason. If your QA uses UV inspection, specify a UV-traceable coating such as Protektor UV.
Standards: IPC-CC-830B and MIL-I-46058C
IPC-CC-830B is the industry qualification standard for conformal coatings — a battery of tests covering appearance, insulation resistance, moisture-and-insulation resistance, thermal shock, flexibility, flammability, fungus resistance, hydrolytic stability, and UV fluorescence.
MIL-I-46058C was the older US military specification, made inactive for new designs in November 1998 and effectively superseded by IPC-CC-830. Note the direction: a coating qualified to MIL-I-46058C is by default qualified to IPC-CC-830, but not vice versa. When a supplier says ‘MIL-grade’, ask which specific spec and for the test data behind it. UL 746 (flammability/electrical) is often referenced alongside.

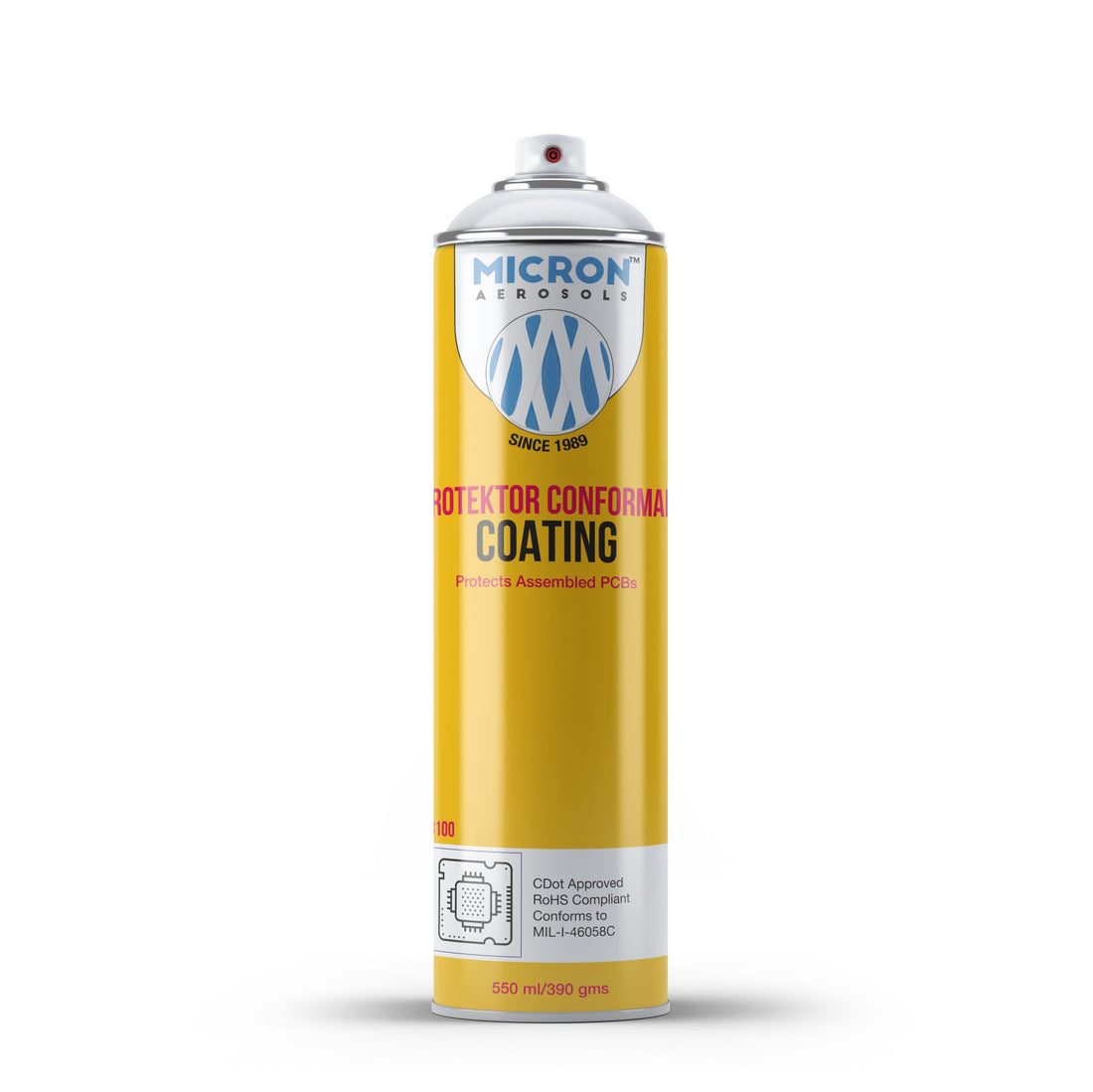

Micron Aerosols Protektor® conformal coatings
Micron Aerosols manufactures the Protektor® range in India — available in aerosol and bulk, priced in ₹, with fast local shipping (an advantage over imported brands for Indian production lines).
Browse the full Protektor® range →
Frequently asked questions
What is conformal coating spray used for?
It protects PCBs and electronic assemblies from moisture, dust, chemicals and corrosion by applying a thin protective polymer film, improving reliability and lifespan.
What is the best conformal coating for a PCB?
For most general electronics, a fast-drying acrylic coating is the best balance of protection, ease of application and reworkability. Use silicone for high-heat/vibration, urethane for harsh chemicals, and parylene for mission-critical applications.
Is silicone or acrylic conformal coating better?
Neither is universally better. Acrylic is easier to apply and rework and is ideal for normal temperatures; silicone handles higher temperatures and vibration but is harder to rework.
How long does acrylic conformal coating take to dry?
Acrylic coatings are typically tack-free within minutes and handleable in about 30 minutes, with full cure over a few hours. Protektor 3100 is dry-to-touch in 30 minutes.
Can I use clear acrylic spray paint as conformal coating?
No. Spray paint is not formulated for dielectric performance, does not meet IPC-CC-830, may trap moisture, and can be corrosive to fine-pitch electronics. Use a purpose-made conformal coating.
How thick should conformal coating be?
Commonly 25–75 microns (1–3 mils) for acrylic and urethane. Verify with a wet-film gauge or UV inspection.
Does conformal coating need to be removed for repair?
Yes — for rework you remove the coating locally (acrylic is easiest, with solvent), repair, then re-coat.
