Micron Aerosol

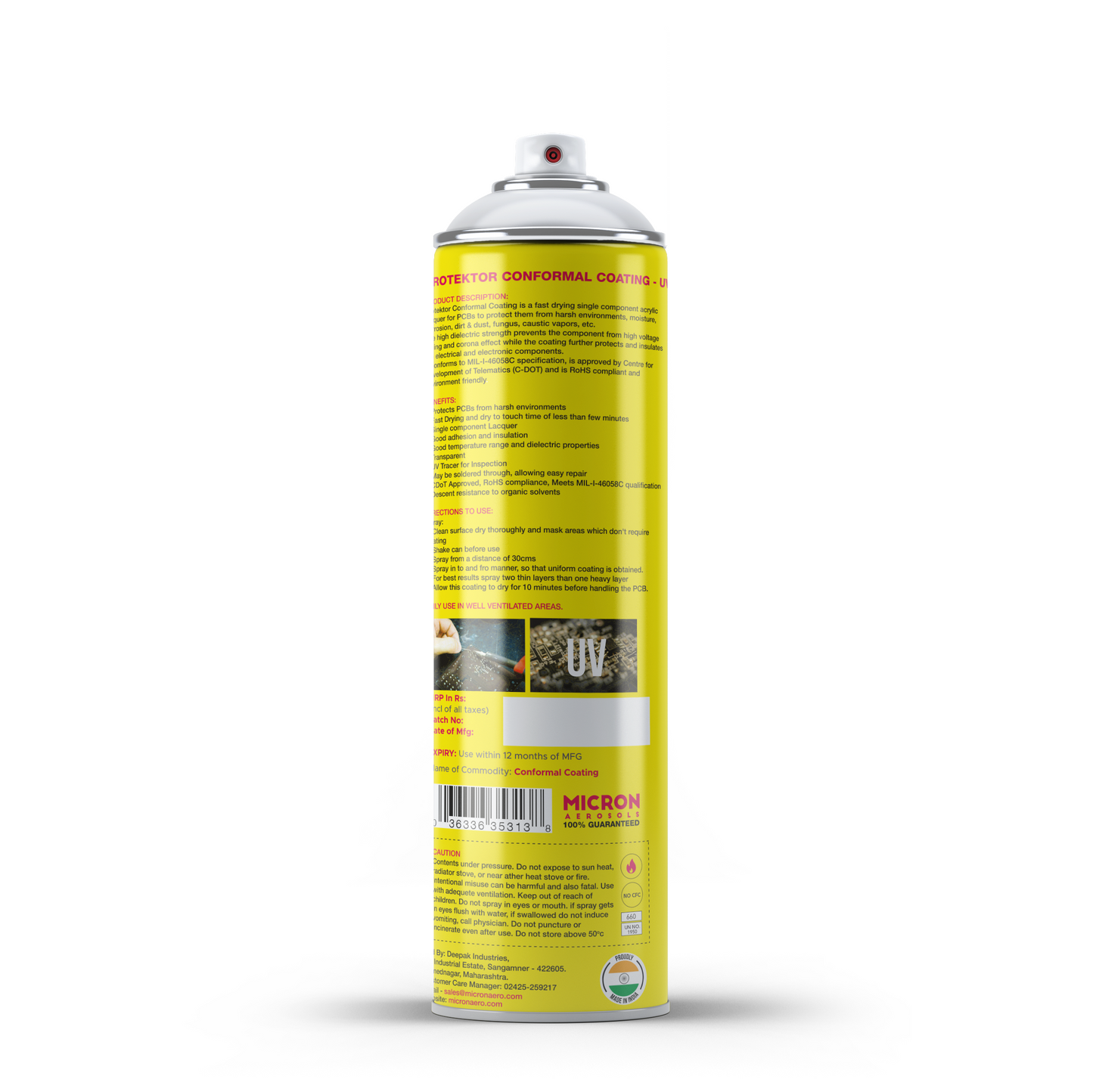

Protektor® Conformal Coating Spray - UV for PCBs, Electronics | With UV Tracer - Glows under UV Light

Rs. 700.00

~~Rs. 950.00~~ Rs. 700.00

Sale Sold out

Tax included. Shipping calculated at checkout.

Size Aerosol Spray 550 ml Bulk Carbouy 5000ml

Product variants

Quantity

UV Tracable Conformal Coating - Protektor® is a fast drying single component acrylic lacquer for PCBs to protect them from harsh environments, moisture, corrosion, dirt & dust, fungus, caustic vapors, etc.

The high dielectric strength prevents the component from high voltage arcing and corona effect while the coating further protects and insulates the electrical and electronic components. This variant comes with UV based Inspection ability

It conforms to IPC-830CC-Military Grade MIL-I-46058C specification, is approved by Centre for Development of Telematics (C-DOT) and is RoHS compliant and environment friendly.

	Liquid Variant	Spray Variant
Description	Conformal Coating Brushable UV for PCB Assemblies, Electrical/Electronic Insulators	Conformal Coating Brushable UV for PCB Assemblies, Electrical/Electronic Insulators

Packing	5 ltr in Carboy for Brushable coating	550ml Aerosol Spray
Type	Acrylic Resin (AR)
Appearance	Clear Transparent
Specific Gravity	0.95
Propellent	Non CFC, Flammable
Temperature Resistance	-70o C to 120o C
Dry to Touch Time	30 Mins
Film Thickness	26 Micron
Clarity	Clear transparent
Shelf Life	18 Months
GRADE	MIL – I – 46058C

2. Electrical Properties

Insulation Resistance after Chamber Test	2.5 X 1011 Ohms
Breakdown Voltage	700 V at 26 Micron

3. Specifications

Advantages	Fast Drying Single Component spray for Printed Circuit Board assemblies Protects from Humidity, Fungus & Corrosion by forming film on components Provides Insulation against high voltage arcing Excellent Flexibility & Solderability Black Coated Components can hide your circuits. Easy to Handle with Dry to tough time at 30mins Convenient to apply as aerosol and efficient for assembly line operations
Fields of Application	Telephone and Telephone Exchanges Manufacturing Computer Process Control Equipments Programmable Logic Controllers Electronic Equipments like Weighing Scales, Multimeters LCD LED Bulbs, CFL Variable Frequency Drives Mobiles, Computers, Laptops, Tablets, Hard Drive PCBs Automobile Control Computers
Packaging	550ml Aerosol Spray Can 5 Ltr Carboy ( For Brushable coating)

Cured film can be easily removed by using Protektor Conformal Coating Thinner The information in the sheet was written based on the best knowledge and experience currently available. The information provided in this Safety Data Sheet is correct to the best of our knowledge, information and belief at the date of its publication. The information given is designed only as a guidance for safe handling, use, processing, storage, transportation, disposal and release and is not to be considered a warranty or quality specification. The information relates only to the specific material designated and may not be valid for such material used in combination with any other materials or in any process, unless specified in the text.
